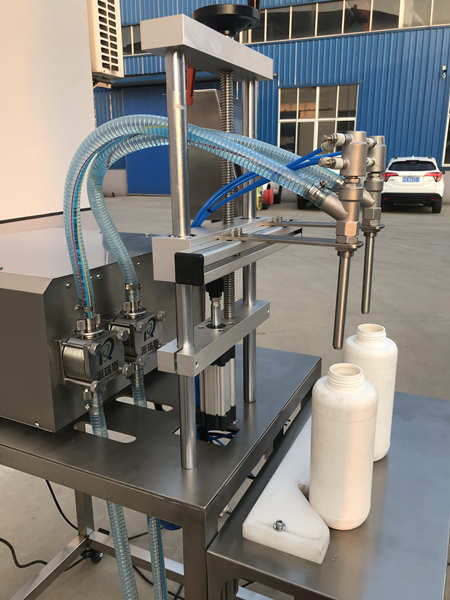

Semi-auto two heads gear pump filling machine for high viscosity cream
Overview:
Digital filling machine is suitable for different viscosity of water products, it can be applied to a variety of different types of containers and can be widely used in daily chemical, cosmetics,food and other industires. It also can be worked together with capping machine, labeling machine.Filling volume is from 10ml to unlimited volume.
Features:
1. It is suitable for high /low viscosity cream , foaming liquid , such as shampoo, lotion,honey,detergent,etc.
2. It's contact parts are 316 stainless steel.
3. It's filling accuracy is ±0.5g.
4. Filling volume from 10ml to umlimited
5. It can be 2&4&6 heads and etc.,
6. Using PLC, man-machine interface, servo control system, low-voltage components, to ensure excellent quality and stable performance.
7. The adjustment of filling volume just need to be changed in touch screen, easy to be controlled and high accuracy.
8. It is easy to be cleaned, small size to save space.
9. Pneumatic nozzle could prevent wire-drawing.
10. The Digi-Fil uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.
11. The volume, speed the time between of filling can be designed.
12. Each filling can be fast first and slow later, bubble cam be eliminated.
13. Pump unit easily dismantled for cleaning.
Main Technical Specification:
| Volume | 10ml-unlimited volume |
| Filling accuracy | ±0.5% |
| Filling speed | 100ml 48b/min 300ml 32b/min 1000ml 20b/min |
| Supply Power | 1P 220V 50-60Hz 2500W |
| Size | 2440*1000*1550mm |
| Net Weight | 200KGS
|
